CLIENT: CPI Engineering, Mexico
DATE OF START: August 2014
WEIGHT: Max 14264 tons (for Topside), Max 8630 tons (for Jacket)
LOCATION: Gulf of Mexico

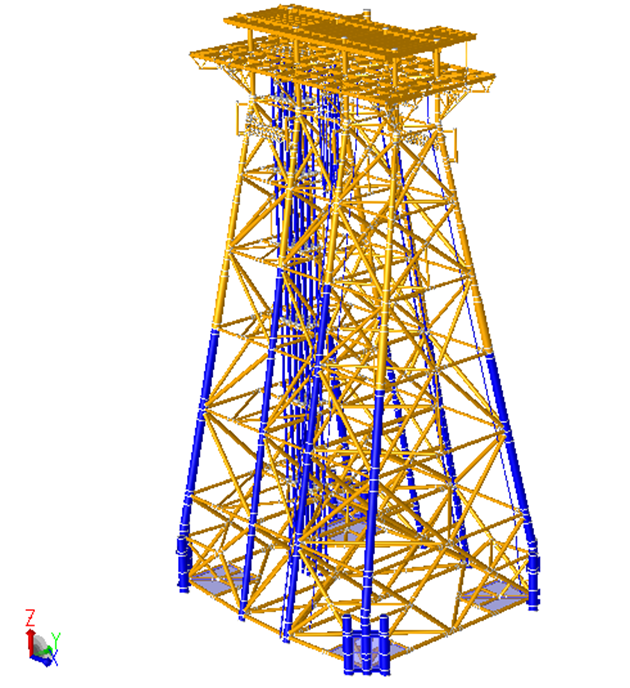

SOW: OTL performed the engineering detailed design for this jacket including:
In-place static and dynamic analysis
In-place spectra fatigue analysis
In-place seismic analysis
Jacket Loadout analysis
Jacket transportation analysis (both marine and structural)
Jacket launch analysis (both marine and structural)
Jacket Flotation/Upending analysis
Jacket on-bottom stability analysis, mudmat capacity, and stress check
Pile free-standing and pile drivability analysis
FE analysis for skirt pile sleeve connection
Member stress check under slamming loads (in-place and launch)
Member ViV check (both in-service and pre-service conditions)
Launch cradle design check and local ring reinforced joints strength check
Hydrostatic ring design check
Joint Design with Inner Stiffening Ring Design
